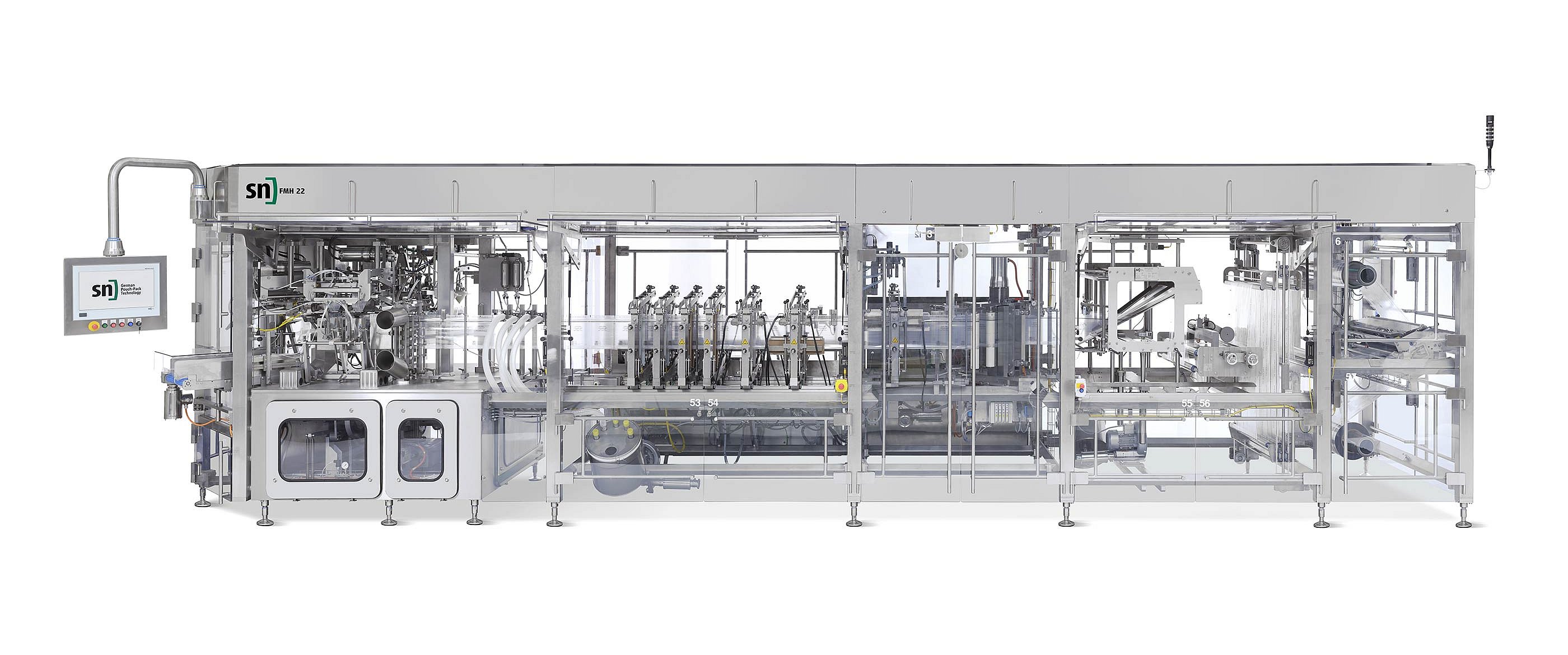

Our FMH 200 horizontal pouch packaging machine is flexible and customizable in a hygienic design. With a large pouch format range and the option to work in duplex, it is ideal for various applications and output ranges of up to 180 pouches per minute. It can adapt to your requirements individually and is the perfect all-rounder for hygienically demanding pouch packaging.
Of course, it is possible to process recyclable packaging materials, such as mono-materials made of plastic or paper, in a high-quality and efficient manner.
Application range
dry food, liquid food, pet food, pharmaceuticals, cosmetic & personal care, non-food.
Pouch size width
150 – 308 mm
Pouch size length
80 – 350 mm
Max. machine output
up to 180 pouches/min.
Power consumption
about 30 kVA
Electricity supply
3 x 400/230V + N + PE, 50/60 HZ
Air consumption
about 1.000 - 1.500 Nl/min, 6 bar
Machine dimensions L x W x H
about 10.300 x 3.100 x 2.400 mm
(Data depending on configuration, filling characteristics, and pouch size)
