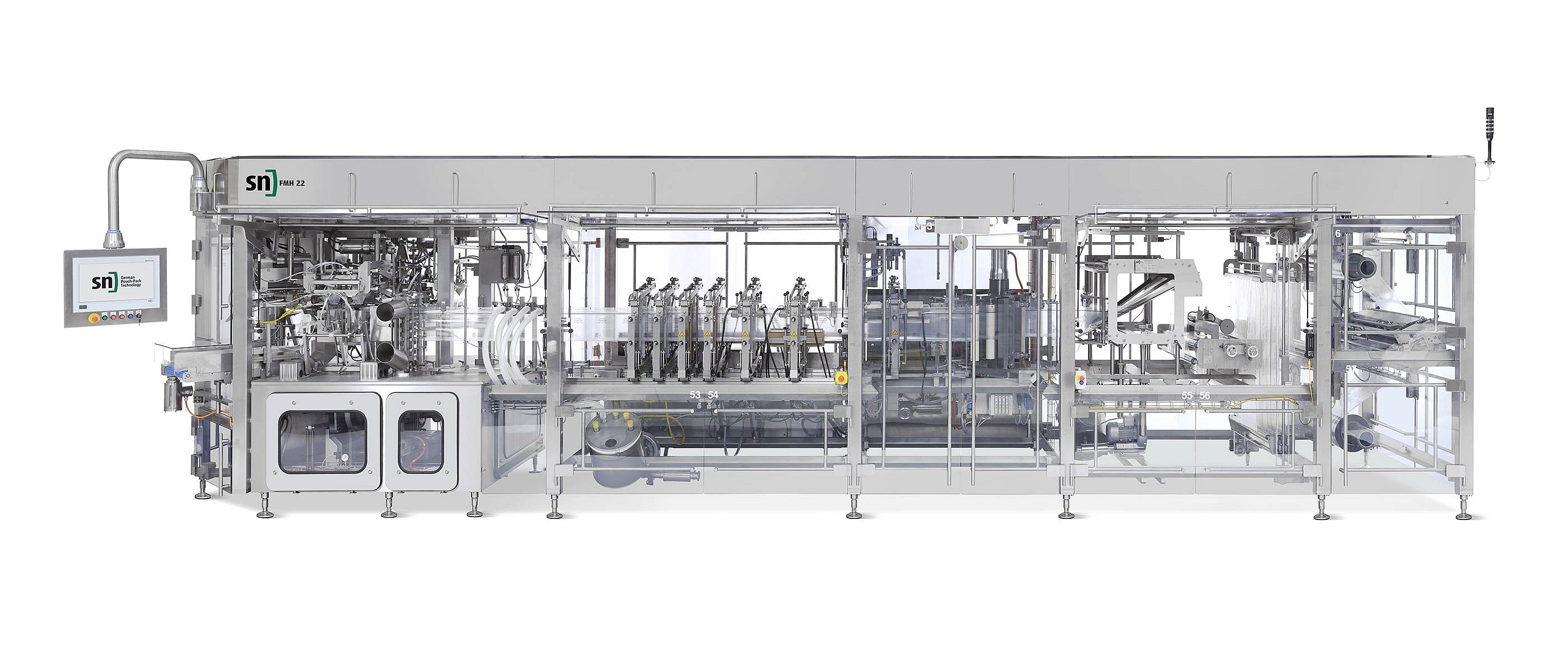

FMH 22 pouch packaging machine

For exceptionally high hygiene requirements

Our FMH 22 horizontal pouch packaging machine is flexible and customizable in a hygienic design. With a large pouch format range and the option to work in simplex and duplex, it is ideal for various applications and output ranges of up to 200 pouches per minute. It can be individually adapted to your requirements and, with its relatively small footprint, is the perfect all-rounder for hygienically demanding pouch packaging.

Of course, it is possible to process recyclable packaging materials, such as mono-materials made of plastic or paper, in a high-quality and efficient manner.

FMH 22

Horizontal form, fill, and seal machine (HFFS) of the Hygienic Series

Intermittent working HFFS rotary machine with eight stations in hygienic design for forming, filling, and sealing flat or stand-up pouches from the roll.

Pouch types:

3-side or 4-side sealed pouches, bottom fold type pouches, stand-up pouches



Application range

dry food, liquid food, pet food, pharmaceuticals, cosmetic & personal care, non-food.

Technical details

Simplex

Pouch size width
120 – 350 mm

Pouch size length
120 – 350 mm

Max. machine output
up to 100 pouches/min.

Power consumption
approx. 30 kVA

Electricity supply
3 x 400/230V + N + PE, 50/60 HZ

Air consumption
approx. 600 Nl/min, 6 bar

Machine dimensions L x W x H
approx. 7.500 x 2.400 x 2.400 mm

(Data depending on configuration, filling characteristics, and pouch size)

Duplex

Pouch size width
100 – 190 mm

Pouch size length
100 – 350 mm

Max. machine output
up to 200 pouches/min.

Power consumption
approx. 30 kVA

Electricity supply
3 x 400/230V + N + PE, 50/60 HZ

Air consumption
approx. 600 Nl/min, 6 bar

Machine dimensions L x W x H
approx. 7.500 x 2.400 x 2.400 mm

(Data depending on configuration, filling characteristics, and pouch size)

Standard equipment
  • Hygienic design (e.g. closed cavities)
  • Wash down construction
  • Machine frame in stainless steel
  • Servo-driven unwinding
  • Central operation and comfortable process control
  • Control: SPS Siemens or Allen Bradley (Rockwell)
  • Remote service

(further details on request)

Optional equipment
  • Convertibility from duplex to simplex
  • Coding facilities
  • Stand-up pouch device
  • Reclosure systems
  • Recipe management
  • Nitrogen gassing
  • Ultrasonic sealing

(further details on request)
