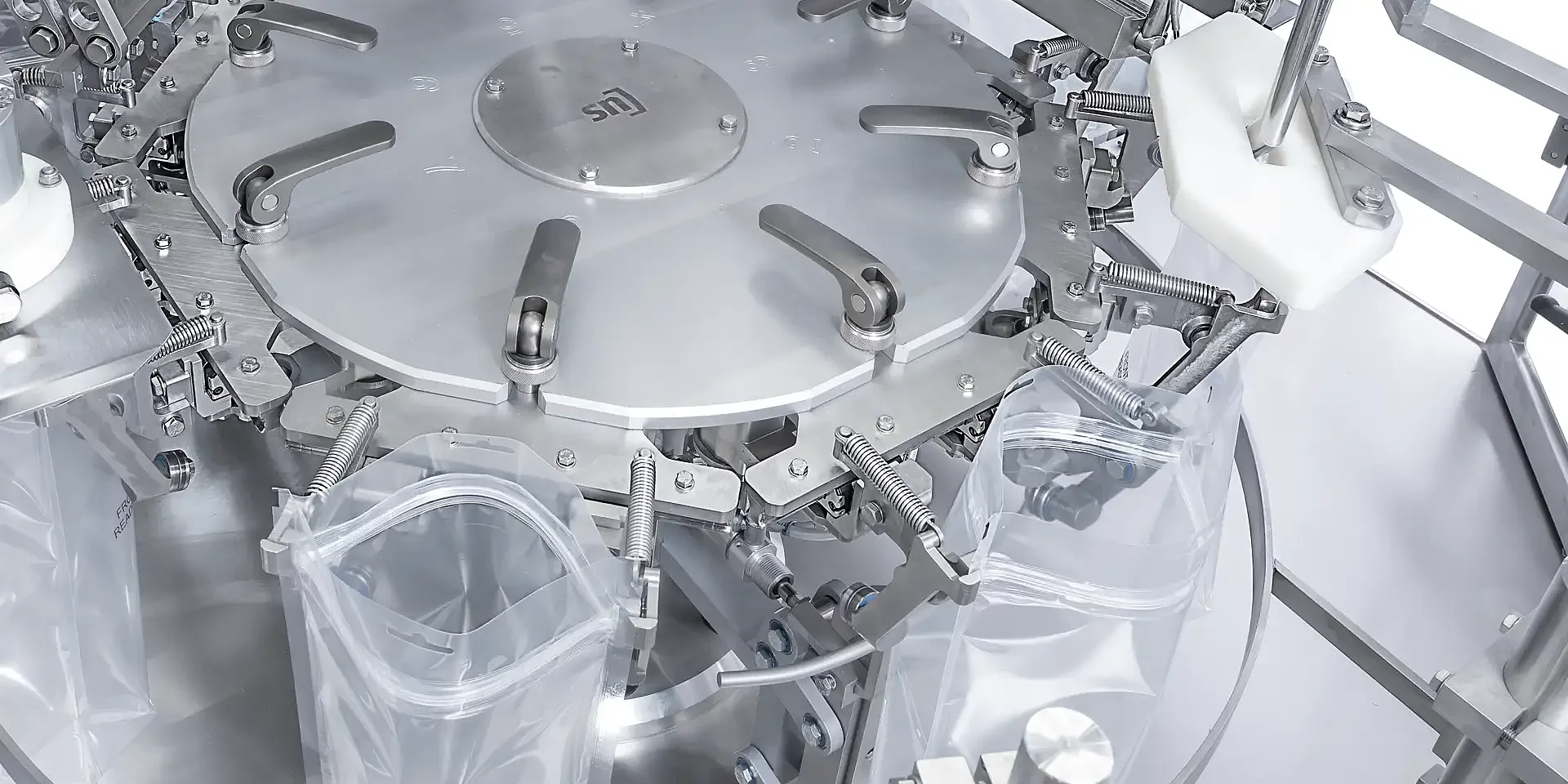

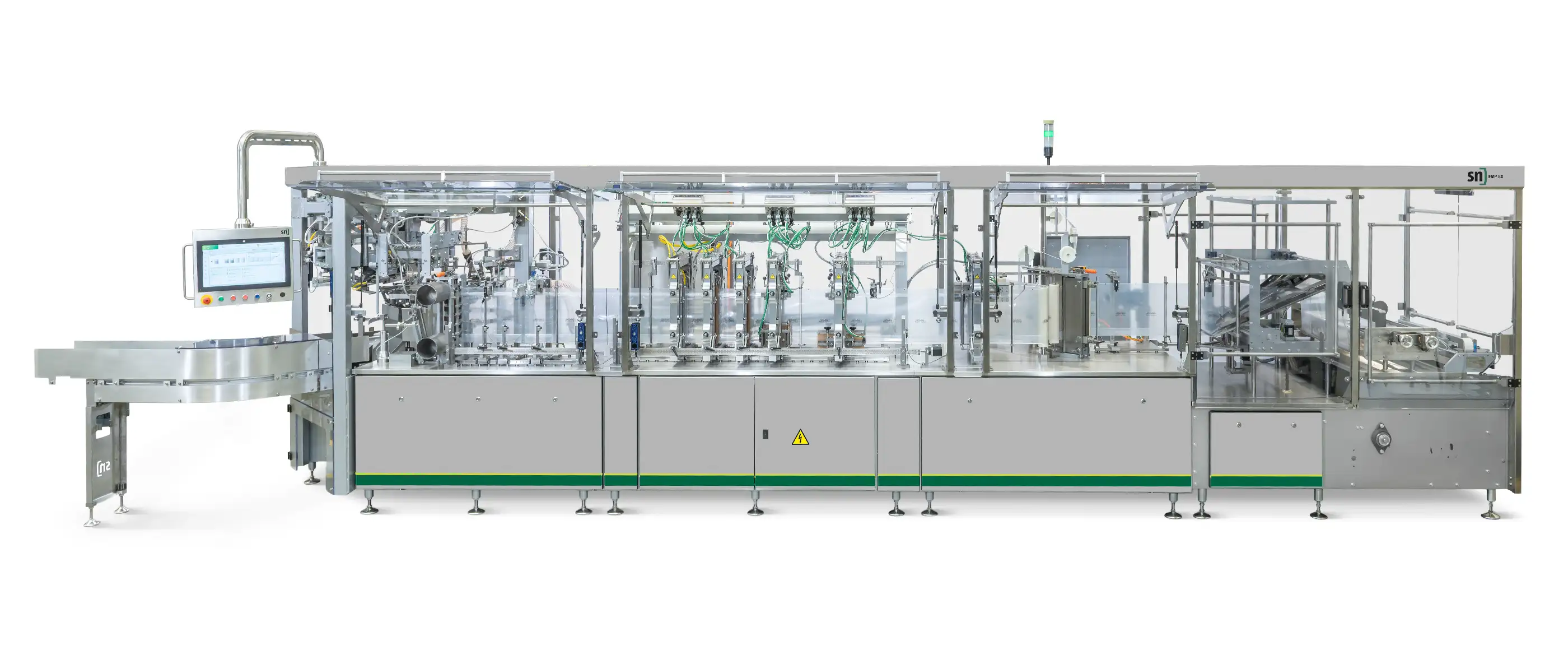

Our FMP 80 horizontal pouch packaging machine is a flexible and customizable Professional Series machine with eight rotary stations for producing, filling, and sealing flat or stand-up pouches from the roll. The machine is suitable for almost all product applications.

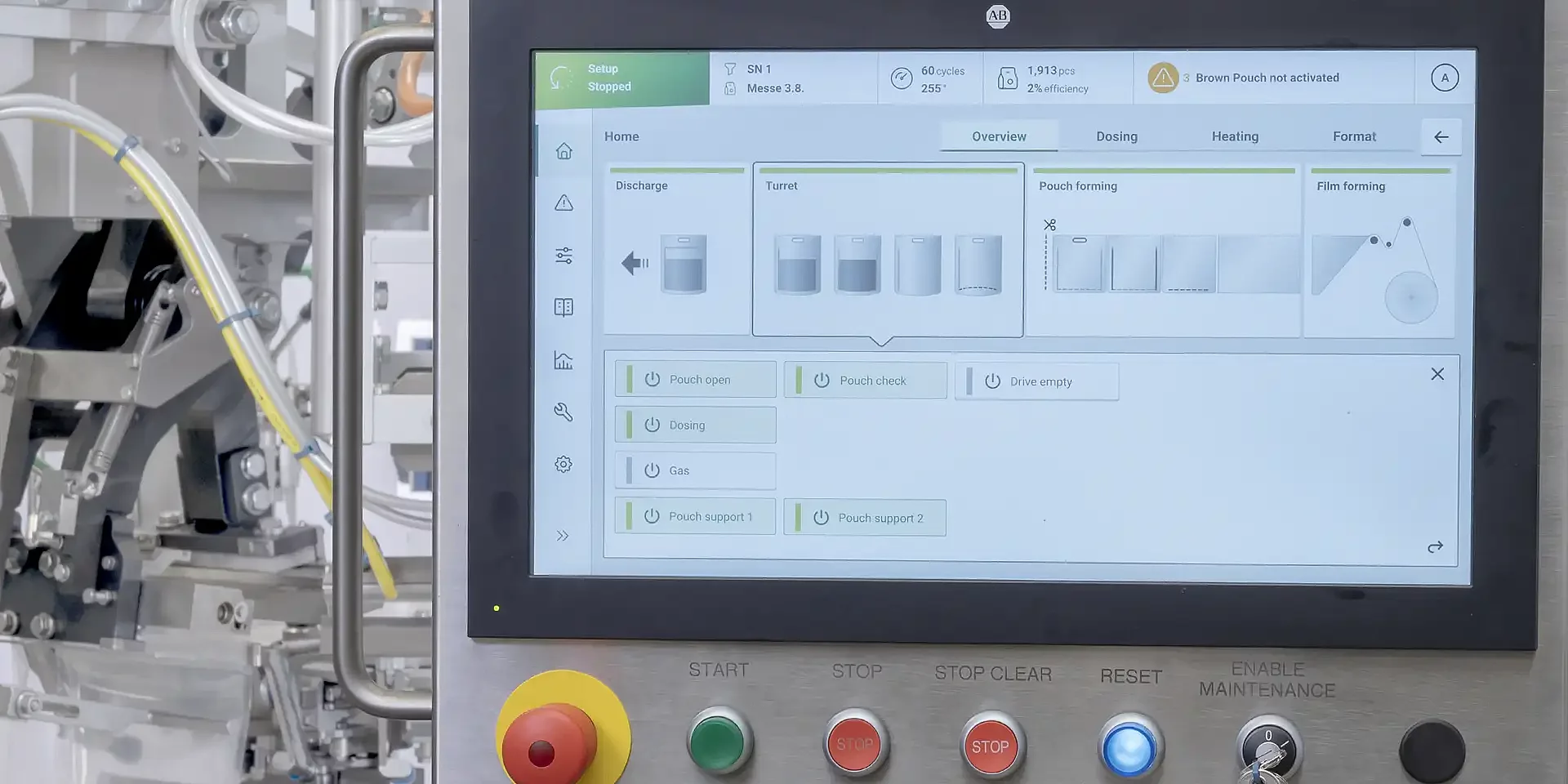

With a performance of up to 200 pouches per minute, innovative drive technology, and maximum customizability, the machine offers the perfect combination of performance, usability, and cost-effectiveness. Thanks to quick and easy format changes recipe driven from the color HMI in just a few minutes, long downtimes are over.
The high-quality and efficient processing of recyclable packaging materials, such as monomaterials made of plastic or paper, is of course possible.
Application range
dry food, liquid food, pet food, pharmaceuticals, cosmetic & personal care, non-food
Pouch size width
110 – 280 mm
Pouch size length
80 – 350 mm
Max. machine output
up to 100 pouches/min.
Power consumption
approx. 15 – 20 kVA
Electrical connection
3 x 400/230V + N + PE, 50/60 HZ
Air consumption
approx. 1.200 Nl/min, 6 bar
Machine dimensions L x W x H
approx. 6.100 x 2.050 x 2.200 mm
(Data depending on configuration, filling characteristics, and pouch size)
Pouch size width
50 – 125 mm
Pouch size length
80 – 350 mm
Max. machine output
bis 200 pouches/min.
Power consumption
approx. 15 – 20 kVA
Electrical connection
3 x 400/230V + N + PE, 50/60 HZ
Air consumption
approx. 1.400 Nl/min, 6 bar
Machine dimensions L x W x H
approx. 6.100 x 2.050 x 2.200 mm
(Data depending on configuration, filling characteristics, and pouch size)
Contact
We are happy to support you in your pouch packaging project with customized machine and dosing technology.
We look forward to your inquiry.
